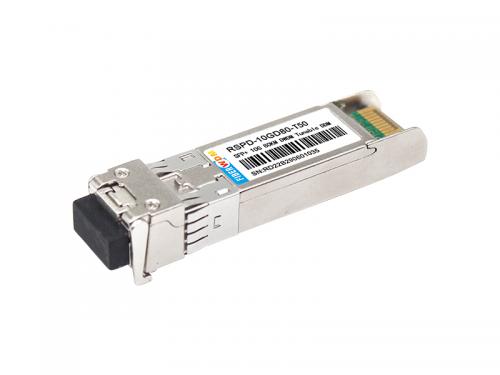

10Gb/s 80km DWDM Tunable SFP Transceiver
Features: Supports 9.95 to 11.3Gb/s bit rates Hot-Pluggable Duplex LC connector DWDM TUNABLE laser transmitter APD photo-detector 50GHz ITU-T Grid, C Band SMF links up to 80km 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface Power Supply :+3.3V Power consumption<2.5W Temperature Range: 0~ 70°C RoHS compliant Applications: Fully Tunable 50GHz DWDM SFP 10GBASE-ZR/ZW Ethernet Sonet OC-192/SDH SDH STM-64 ITU-T G.959.1 P1L1-2D2 10G Fibre channel DWDM Networks
- 10Gb/s SFP DWDM 80km
- 10Gb/s 80km DWDM Tunable
- DWDM SFP 80km Transceiver
- DWDM SFP Transceiver
查看更多

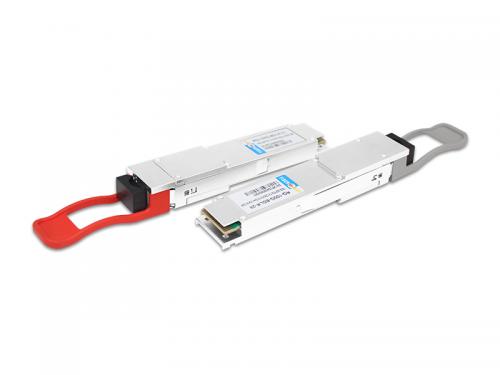

100Gb/s QSFP28 ZR4 BIDI 80km Transceiver
Features Support line rates from 103.125 Gb/s to 112.2 Gb/s OTU4 Built-in 4-channel Clock and Data Recovery (CDR) in TX and RX LAN WDM EML laser and PIN receiver with SOA Up to 80km reach for G.652 SMF Hot pluggable 38 pin electrical interface QSFP28 MSA compliant BIDI LC optical receptacle RoHS-10 compliant and lead-free Excellent EMI performance Single +3.3V power supply Maximum power consumption 5.5W Case operating temperature Commercial: 0 ~ 70℃ Extended: -5 ~ +85℃ Applications 100GBASE-ZR4 Ethernet Links Infiniband QDR and DDR interconnects Telecom networking
- 100G BIDI 80km Transceiver
- 100G Single Fiber 80km Transceiver
- 100G ZR4 QSFP28 single fiber 80km
- 100G QSFP28 80KM
- 100G ZR4 QSFP28
- 100G ZR Transceiver
查看更多

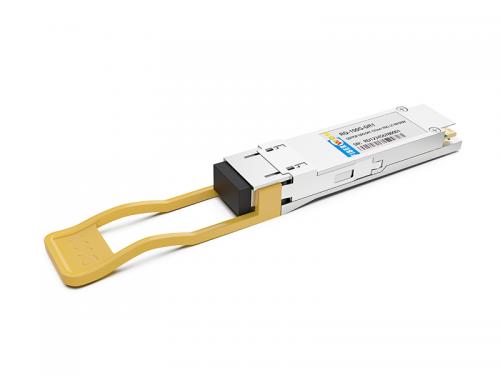

100G QSFP28 DR1 1310nm LC SM 500M Transceiver
Features Up to 106.25Gbps data rate by PAM4 modulation 1x100G PAM4 EML laser Duplex LC receptacle optical interface Single +3.3V power supply DDM function implemented Hot-pluggable QSFP28 form factor Maximum link length of 500m on SMF fiber Low power dissipation:<3.5W International class 1 laser safety certified Operating temperature range: 0℃ ~ +70 ℃ Compliant with ROHS6.0 Applications 100GBASE Ethernet Links Switch & Router Connections Data Centers Standards IEEE 802.3bm IEEE 802.3cd 100G Lambda MSA QSFP MSA SFF-863
- 100G QSFP28 DR1 1310nm LC SM 500M
查看更多

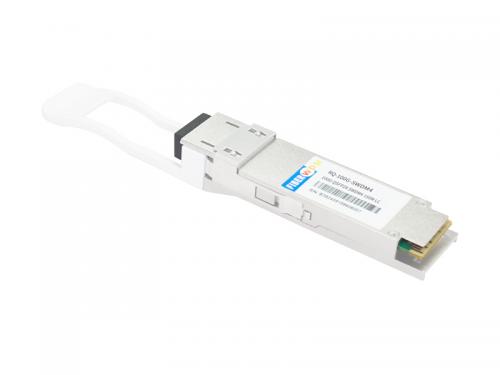

100G QSFP28 SWDM4 Optical Transceiver
Feature Compliant with QSFP28 MSA Compliant with SWDM MSA Compliant with IEEE802.3bm CAUI-4 Hot-pluggable QSFP28 form factor 4x25Gb/s 850mm VCSEL-based transmitter Supports 103.1Gbps aggregate bit rate Power dissipation<3.5W Maximum link length of 150m on OM5 multi mode Fiber Case temperature range of 0℃ to 70℃ Duplex LC receptacles CAUI-4 electrical interface RoHS compliant Applications 100G Ethernet over Duplex MMF
- 100G QSFP28 SWDM4
- Optical Transceiver
查看更多

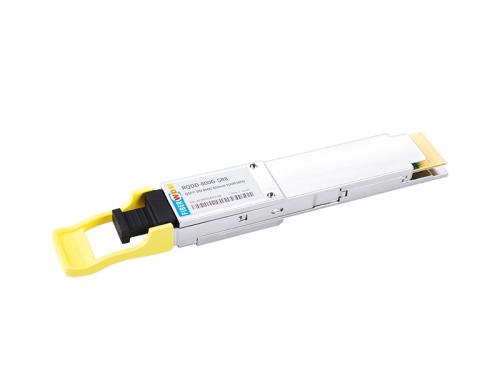

800G QSFP-DD SR8 850nm 100m MPO-16 APC
Features QSFP-DD Serial Optical Interface 8x100G PAM4 retimed 800GAUI-8 electrical interface MPO-16 APC connector 8 channel VCSEL arrays and 8 channels PIN photo detector arrays Maximum link length of 60m on OM3 or 100m on OM4 QSFP-DD MSA Compliant Hot Pluggable QSFP-DD form factor Compliant to QSFP-DD-Hardware-Rev 6.3 MSA Compliant to CMIS 5.2 Support Protocol Compliant to IEEE 802.3db Compliant to IEEE 802.3ck Low Power Consumption Less than 14W in temperature range of 0 to 70℃
- 800G QSFP-DD
- SR8 850nm 100m
- MPO-16 APC
查看更多
800G OSFP SR8 MM MPO12 Optical Transceiver IB
Features OSFP Serial Optical Interface 8x100G PAM4 retimed 800GAUI-8 electrical interface Dual MPO-12 APC connector and MPO16 APC connector are provided 8 channel VCSEL arrays and 8 channels PIN photo detector arrays Maximum link length of 60m on OM3 or 100m on OM4 OSFP MSA Compliant Hot Pluggable OSFP form factor Compliant to OSFP Module Specification Rev 5.0 Compliant with CMIS 5.2 Support Protocol Compliant with IEEE 802.3db Compliant to IEEE 802.3ck Low Power Consumption Less than 14W in temperature range of 0 to 70℃ Applications 800GBASE-SR8 800G Ethernet Data center
- 800G Optical Transceiver
- 800G OSFP SR8
- OSFP 800G SR8
- 800G SR8
- 800G SR8 100m
- 800G MPO Transceiver
查看更多

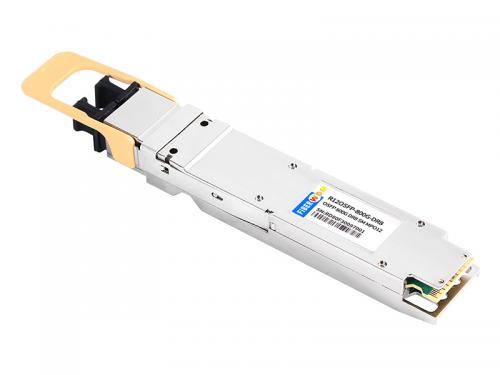

800G OSFP DR8 SM MPO12 Optical Transceiver IB
Features Form Factor: Hot-pluggable OSFP800 form factor Data Rate: Aggregate data rate of 850 Gb/s and Breakout data rate of 106.25 Gb/s Optical Interface: Compliant to 2×400GBASE-DR4 and 8x100GBASE-DR Electrical Interface: Compliant to 2×400GAUI-4 and 8x100GAUI-1 Management Interface: I2C management interface Reach: Up to 500m over MPO/APC single mode fiber Power consumption: 16 W max Operating case temperature: 0 ~ 70 ℃ Power Supply: Single 3.3V power supply Compliance Form Factor: OSFP MSA Rev 5.0 Optical: IEEE802.3cd /IEEE802.3bs Electrical: IEEE802.3ck Firmware: CMIS 5.2 Environment: RoHS Stability: GR-468-CORE Applications 800Gb/s Ethernet Data Center
- 800G OSFP DR8
- OSFP 800G DR8
- 800G DR8
- 800G DR8 500m
查看更多
100G CFP2 ER4 Dual Rate 40km Module
Features Supports multi-rate (100GE and OTU4); from 103.1Gb/s to 111.8Gb/s aggregate; Lane bit rate 25.78 Gb/s 100GE, 27.95 Gb/s OTU4; Up to 40km transmission on SMF; LANWDM laser and PIN receiver with SOA; High speed I/O electrical interface (CAUI-4); MDIO interface with integrated Digital Diagnostic CFP2 MSA package with duplex LC connector; Single +3.3V power supply; Maximum power consumption 14W; Operating case temperature: 0 to +70 °C; Complies with IEEE802.3ba and ITU-T G.959.1; Complies with EU Directive 2015/863/EU; Application 100GBASE-ER4;
- 100G CFP轉(zhuǎn)QSFP28轉(zhuǎn)換模塊
- 100G CFP 模塊
- 100G Optical Transceiver
- 轉(zhuǎn)QSFP28 轉(zhuǎn)換模塊
- 100G CFP Adaptor Module
- CFP to QSFP28 100G Adaptor
查看更多

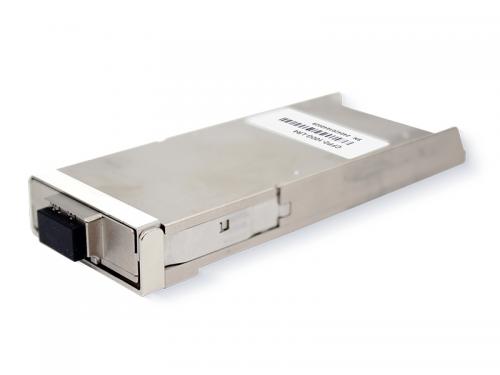

100G CFP2 LR4 single Rate 10km Module
Features Supports single-rate 103.1Gb/s aggregate(100GE); Lane bit rate 25.78 Gb/s 100GbE; Up to 10km transmission on SMF; LAN WDM laser and PIN receiver; High speed I/O electrical interface (CAUI-4); MDIO interface with integrated Digital Diagnostic monitoring; CFP2 MSA package with duplex LC connector; Single +3.3V power supply; Maximum power consumption 6W; Operating case temperature: -5 to +70 °C; Complies with IEEE802.3bm; Complies with EU Directive 2015/863/EU; Application 100GBASE-LR4;

查看更多

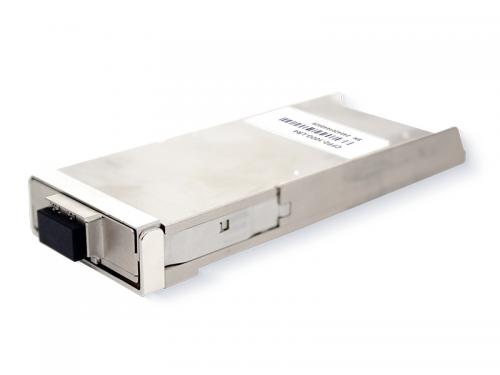

100G CFP2 LR4 Dual Rate 10km Module
Features Supports multi-rate (100GE and OTU4); from 103.1Gb/s to 111.8Gb/s aggregate; Up to 10km transmission on SMF; LANWDM laser and PIN receiver with SOA; High speed I/O electrical interface (CAUI-4); MDIO interface with integrated Digital Diagnostic CFP2 MSA package with duplex LC connector; Single +3.3V power supply; Maximum power consumption 12W; Operating case temperature: 0 to +70 °C; Complies with IEEE802.3ba and ITU-T G.959.1; Complies with EU Directive 2015/863/EU; Application 100GBASE-LR4

查看更多

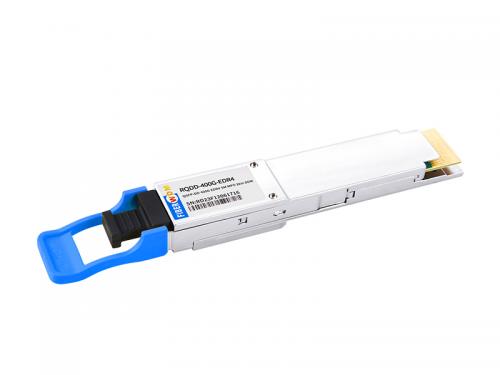

400G QSFP-DD EDR4 SM MPO12 2km Optical Transceiver
Features IEEE 802.3bs Specification compliant QSFP-DD MSA compliant 4x106.25 Gbps PAM4 optical interface 8x53.125 Gbps PAM4 electrical interface I2C interface with integrated DDM Up to 2km transmission distance on single mode fiber (SMF) with FEC up ply voltage: 3.3 V Maximum power consumption: 12 W MTP/MPO-12 connector Operating case temperature: 0 to 70 °C RoHS compliant Applications 400G Ethernet Datacenter enterprise networking
- 400G QSFP 2KM
- QSFP 400G 2KM
- 400g optical transceiver 2KM
- 400G LR4 10KM
- 400G QSFP-DD EDR4
- lc optical transceive
查看更多

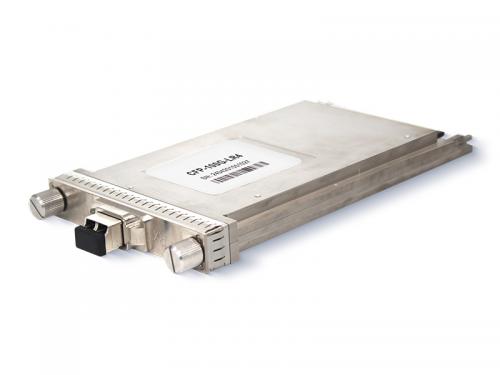

100G CFP LR4 Dual Rate 10km Module
Features Supports multi-rate (100GE and OTU4) from 103.1Gb/s to 111.8Gb/s aggregate. Lane bit rate 25.78 Gb/s 100GE, 27.95 Gb/s OTU4 Up to 10km transmission on SMF High speed I/O electrical interface (CAUI-10) MDIO interface with integrated Digital Diagnostic monitoring CFP MSA package with duplex LC connector Single +3.3V power supply Maximum power consumption 12W Operating case temperature: 0 to +70 °C Complies with IEEE802.3ba and ITU-T G.959.1 Complies with EU Directive 2015/863/EU Application 100GBASE-LR4

查看更多
