無源保偏CWDM器件

Low insertion loss
High Extinction Ratio
High channel isolation
High stability and reliability

現在查詢下載

類別

熱門產品

產品詳細信息

Polarization Maintaining CWDM Components

FIBERWDM can support there port Polarization Maintaining CWDM (PM CWDM) Components, wavelength is 1270nm to 1610nm, channel spacing is 20nm. The PM CWDM Components are characterized with low IL, high return loss, high extinction ratio and excellent environmental stability and reliability, so great used in CWDM network, and high speed communication system and instrumentation .

Specifications

Parameter	Unit	CWDM
Operating Wavelength	nm	1270~1610nm
Center Wavelength Accuracy	nm	± 0.5
Channel Spacing	GHz	20nm
Channel Pass band (@-0.5dB bandwidth) Min.)	nm	>13
Pass Channel Insertion Loss	dB	≤0.9
Reflection Channel Insertion Loss	dB	≤0.6
Channel Ripple	dB	< 0.3
Pass Channel Isolation	dB	>30
Reflection Channel Isolation (Non-adjacent)	dB	>15
Extinction Ratio @ 23℃	dB	> 20
Directivity	dB	>55
Return Loss	dB	>45
Maximum Power Handling	mW	300
Fiber Type	-	PM Panda Fiber
Operating Temperature	°C	0 ~+65
Storage Temperature	°C	-40 ~+85
Package Dimension	mm	Φ5.5 x L35

1. Above specifications are for device without connector, and the PM WDM device is both axis working. All parameters are tested at room temperature.

2. For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower. Power transmits through the connector less than 2W. The default connector key is aligned to slow axis.

3. For >10W high power applications, we will use heat sink package, contact FIBERWDM for details.

4. If there is pulse application, please be sure to inform us of pulse energy and peak power.

5. 1XN PM CWDM module is also available, please contact FIBERWDM.

Package Information

PM CWDM Component

Order Information

PMC-	-Channel-	-Package	Connector-	Pigtails Diameter	Fiber Length	Working Axis
	27:1270nm	S: steel tube	01U/A: LC/UPC or LC/APC	25:250μm bare fiber	05:0.5m	B：Both axis working
	29:1290nm	X: others	02U/A: SC/UPC or SC/APC	90:900μm Loose Tube	10:1.0m
	....		03U/A: FC/UPC or FC/APC	XX: Others	15:1.5m
	61:1610nm		04U/A: others		XX: Others

When you inquire, please provide the correct P/N number according to our ordering information, and attach the appropriate description would be better. If need any connector, we do not recommend choosing a 250μm bare fiber pigtail.

Part Number Example: PMC-27-S-01A-90-10-B

Description: Polarization Maintaining CWDM, 1270nm, LC/APC all ports, 0.9mm 1.0m fiber, Steel tube,Both axis working.

If you need to customize other specifications, please provide detailed description for your requirement, and contact us by email: sales@fiberwdm.com

相關的標簽 :

保偏CWDM
PM CWDM

想知道這個產品嗎？

發送信息

留言

如果您對我們的產品感興趣并想了解更多詳細信息，請?jiān)诖颂幜粞?，我們將盡快答復您。

主題 : 無源保偏CWDM器件
您的電話
您的郵箱 *
寫你的問題 :

相關產品

無源保偏DWDM器件

Low insertion loss High Extinction Ratio High channel isolation High stability and reliability

980 1064nm保偏濾波器

Low insertion loss High Extinction Ratio High channel isolation High stability and reliability

980 1550nm保偏濾波器

Low insertion loss High Extinction Ratio High channel isolation High stability and reliability

1064 1550nm保偏濾波器

Low insertion loss High Extinction Ratio High channel isolation High stability and reliability

Dual Fiber 4CH 1270-1330nm CWDM MUX DEMUX With EXP, LC/UPC, Plug-in LGX Box and 2slot 1U Rack

Efficient Transmission: It supports 4 channels of 100G signals with dual - fiber transmission, offering a large capacity and a transmission distance of up to 10 km. Scalable: Equipped with an expansion port, it can increase network capacity without the need for new optical fibers. Easy Installation: The plug - in LGX box is designed to fit into a 2 - slot 1U rack. Excellent Performance: With a wavelength range of 1270 - 1330nm, it has multiple good - performing indicators and can adapt to a wide temperature range. Wide Application: It is suitable for multiple industries, especially in areas with scarce optical fiber resources. Customization - friendly: Customized designs are available. You can contact us via email for more details.

100組2選1光切換光開關 光矩陣設備

具有插入損耗小，切換速度快等特點 RJ45以太網網口通信控制 RS-232串口通信控制獨立控制每個光開關光路

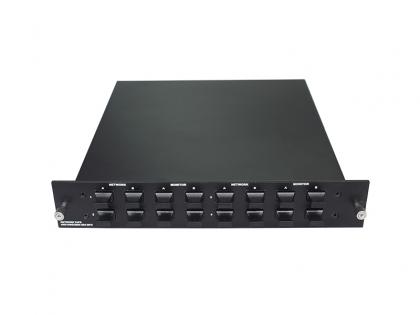

8 OTAPs MPO 網絡分光器模塊
